WZP-631 WZP2-631 Assembly RTD

WZP-631 WZP2-631 Assembly RTD

Overview

WZP-631 WZP2-631 Assembly RTD is a temperature sensor, usually used with display instruments, recording instruments and electronic regulators. It can directly measure liquid, steam.

Features

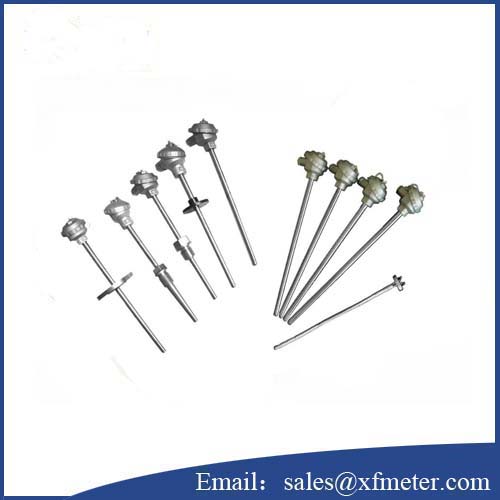

WZP-631 WZP2-631 Assembly RTD

1, Do not compensate for wires, saving costs

2, High mechanical strength and good pressure resistance

3, Good resistance element performance

4, Temperature sensing element is compression spring type, good vibration resistance

5, High measurement accuracy

Main tech data

1, Pt100

2, TMeasuring range: -200~400℃

3, Accuracy class：A or B

4, Junction box form: waterproof junction box

5, Installation method: fixed threaded tapered sleeve type

6.Protection tube diameter: upper end diameter 28mm, lower end diameter 16mm

7.Protection tube material: stainless steel 304, 321, 316, 316L, etc.

8.Protection tube insertion depth: l=75-400mm

9.Thermistor wiring: three-wire or four-wire wiring

Note: Any special design or question of WZP-631 WZP2-631 Assembly RTD, kindly contact the manufacturer for more details.
