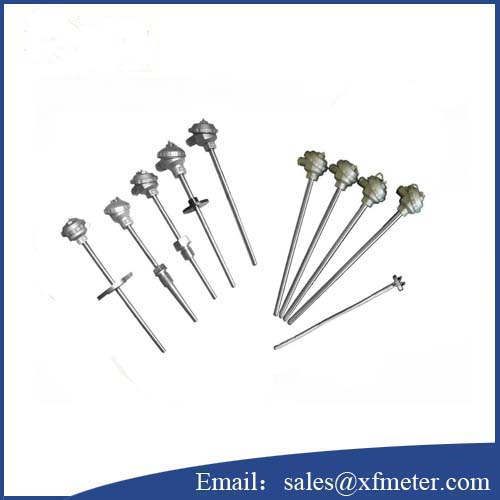

WZP-130 Assembly RTD

WZP-130 Assembly RTD

Overview

WZP-130 Assembly RTD is a temperature sensor, usually used with display instruments, recording instruments and electronic regulators. It can directly measure liquid, steam and gas media and solid surfaces in the range of -200 degrees to 420 degrees in various production processes temperature.

Working principle

WZP-130 Assembly RTD. It is divided into platinum thermal resistance and copper thermal resistance. It uses the characteristics of the substance's own resistance with the change of temperature to measure the temperature. Its temperature-sensing element is made of thin metal wire evenly wound on the skeleton made of insulating material. When the measured medium has a temperature gradient, the measured temperature is the average temperature in the dielectric layer within the range of the temperature-sensing element.

Features

1, Do not compensate for wires, saving costs

2, High mechanical strength and good pressure resistance

3, Good resistance element performance

4, Temperature sensing element is compression spring type, good vibration resistance

5, High measurement accuracy

Main tech data

1, Pt100 and Cu50

2, Three-wire system

3, Product implementation standard: IEC60751, GB/T30121-2013

4,Wiring：Single wiring and double branch wiring

5, Junction box form: Waterproof and Explosion-proof

Installation method

1, No fixture

2, Threaded

3, Flanged

Note: Any special design or question of WZP-130 Assembly RTD, kindly contact the manufacturer for more details.
