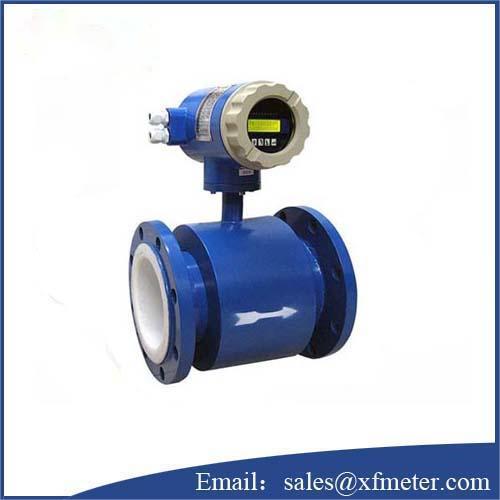

LDCK-80 Magnetic flowmeter

LDCK-80 Magnetic flowmeter

Overview

LDCK-80 Magnetic flowmeter is an instrument used to measure the fluid flow in the pipeline.The magnetic flowmeter is composed of a sensor and a converter. It is based on Faraday's law of electromagnetic induction. It is widely used in the flow measurement of industrial sectors such as petroleum, chemical industry, metallurgy, textile, papermaking, environmental protection, food and municipal management, water conservancy construction, river dredging and other It is used to measure the volume flow of conductive liquid with conductivity greater than 5μS / cm.It can measure the volume flow rate of general conductive liquids, and can also be used to measure the volume flow rate of strong corrosive liquids such as strong acids and bases and uniform liquid-solid two-phase suspended liquids such as mud, ore pulp, and paper pulp. fields.

Working principle

LDCK-80 Magnetic flowmeter according to Faraday's principle of electromagnetic induction, a pair of detection electrodes are installed on the tube wall perpendicular to the axis of the measuring tube and the magnetic force line. When the conductive liquid moves along the axis of the measuring tube, the conductive liquid cuts the magnetic force line to generate an induced potential Detected by the detection electrode, the value is proportional to the flow rate, and its value is: E = B · V · D · K.

Features

1, Full digital processing, strong anti-interference ability, reliable measurement and high precision

2, Measurements are not affected by changes in fluid density, viscosity, temperature, pressure, and conductivity

3,With self-check and self-diagnosis function

4, No blocking parts in the measuring tube, no pressure loss

Main tech data

1.Velocity range: 0.5-10m / s

2.Repeatability error: ± 0.1% of measured value

3.Accuracy level: 0.5 level, 1.0 level

4.Connection method: Flange connection is used between the flowmeter and the piping

Note: Any special design or question of LDCK-80 Magnetic flowmeter,kindly contact the manufacturer for more details.
