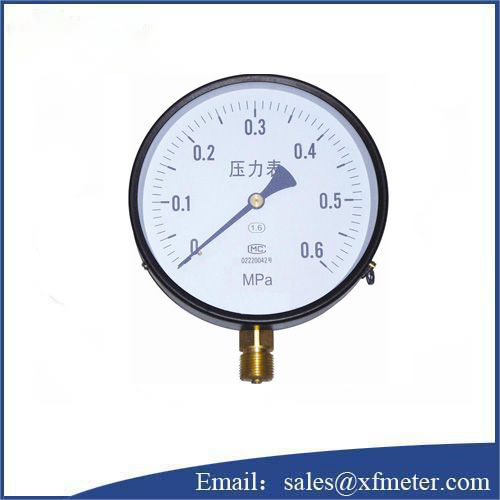

Y-100ZT Y-150ZT General pressure gauge

Y-100ZT Y-150ZT General pressure gauge

Overview

Y-100ZT Y-150ZT General pressure gauge is fittable for measuring the pressure of liquid or gas and other media without explosion, crystallization, solidification and corrosion of copper alloy

Working principle

Y-100ZT Y-150ZT General pressure gauge uses the elastic deformation of the Bourdon tube, it is a sensitive element in the table, to convert the elastic deformation of the Bourdon tube into rotary motion through the conversion mechanism of the movement in the table, causing the pointer to deflect to display the pressure.

Features

The overall structure is reasonable in design, exquisite craftsmanship, has high measurement accuracy and long-term stability, and used in places where petroleum, chemical, metallurgy and other industrial departments need to measure pressure.

Main tech data

1,Installation method:Bottom mounting, Bottom mounting with front flange, Bottom mounting with back flange, Back mounting, Back mounting with front flange, Lower back mounting, Lower back mounting with front flange

2, Main dimensions of outer diameter: φ100，φ150.

3,Accuracy: ф100、ф150、1.5%

4,Ambient temperature: -40～70℃, (Relative humidity ≤ 85%)

5,Bourdon tube/socket: Soft soldering for phosphor bronze bourdon tube and brass socket. High temperature type,40% Silver soldering available for Stainless Steel Bourdon tube.

6,Dial: white, aluminium with black calibration line.

7,Pointer: Aluminium, black

8,Connection: 100/150 M20 × 1.5

Note: Any special design or question of Y-100ZT Y-150ZT General pressure gauge，kindly contact the manufacturer for more details.
