Armored RTD

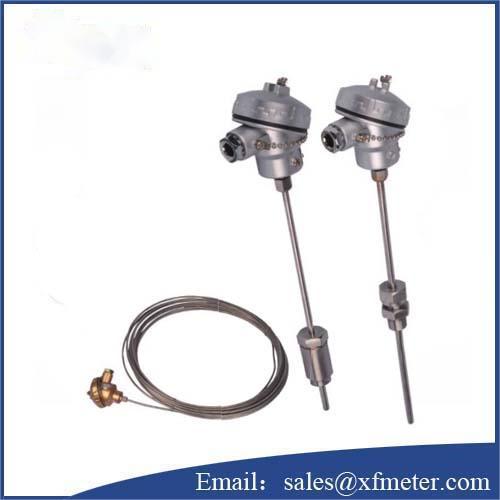

WZPK-123SA WZPK2-123SA WZPK-223SA WZPK2-223SA Armored RTD

Model: WZPK-123SA WZPK2-123SA WZPK-223SA WZPK2-223SA
Type: Pt100
Range: -200~500
Material:Stainless steel
Description: WZPK-123SA WZPK2-123SA WZPK-223SA WZPK2-223SA armored RTD, armored PT100 manufacturer from China, which has good quality and high steady performance.
INQUIRY EMAIL

Overview of WZPK-123SA WZPK2-123SA WZPK-223SA WZPK2-223SA Armored RTD

The outer protective sleeve of the armored platinum resistance is made of stainless steel, and the insulator is filled with high-density oxidizing substances. Therefore, it has strong anti-pollution performance and excellent mechanical strength, and is suitable for installation in harsh environments.

Armored platinum resistance is a kind of temperature sensor. It is smaller in diameter than assembled platinum resistance, easy to bend, and has good shock resistance. It is suitable for installation in occasions where assembled platinum resistance cannot be installed. The WZPK series of armored platinum resistance produced by our factory is imported The platinum resistance temperature measuring element, therefore, has the advantages of accuracy, sensitivity, fast thermal response time, stable quality and long service life.

The armored platinum resistance can be used to measure the temperature in the range of -200～500℃, and it can be directly connected to the secondary instrument with a copper wire. Because of its good electrical output characteristics, it can provide accurate temperature change input signals for displays, recorders, regulators, scanners, data recorders, and computers, and should comply with the JB/T8622-1997 standard.

Working priciple of WZPK-123SA WZPK2-123SA WZPK-223SA WZPK2-223SA Armored RTD

The working principle of the armored platinum resistance wire: the resistance of the platinum resistance wire changes accordingly under the action of temperature. The display instrument will indicate the temperature value corresponding to the resistance value produced by the platinum resistance thermometer.

Model table of WZPK-123SA WZPK2-123SA WZPK-223SA WZPK2-223SA Armored RTD

Model	Graduation	Range	Accuracy	Thermal res -ponse time	Diameter	Length	Install fixtures
WZPK-123 WZPK2-123 WZPK-123S WZPK2-123S WZPK-123SA WZPK2-123SA	PT100	-200~500	A Class B Class	≤3 ≤5 ≤8 ≤12	3mm 4mm 5mm 6mm	100 150 200 250 300 400 500 750 1000	No fixing device, fixed ferrule bolts,
WZPK-124 WZPK2-124 WZPK-124S WZPK2-124S WZPK-124SA WZPK2-124SA
WZPK-125 WZPK2-125 WZPK-125S WZPK2-125S WZPK-125SA WZPK2-125SA
WZPK-126 WZPK2-126 WZPK-126S WZPK2-126S WZPK-126SA WZPK2-126SA
WZPK-223 WZPK2-223 WZPK-223S WZPK2-223S WZPK-223SA WZPK2-223SA
WZPK-224 WZPK2-224 WZPK-224S WZPK2-224S WZPK-224SA WZPK2-224SA
WZPK-225 WZPK2-225 WZPK-225S WZPK2-225S WZPK-225SA WZPK2-225SA
WZPK-226 WZPK2-226 WZPK-226S WZPK2-226S WZPK-226SA WZPK2-226SA

Main tech data of WZPK-123SA WZPK2-123SA WZPK-223SA WZPK2-223SA Armored RTD

Installtion: Without fixing device, fixed thread of ferrule

Juntion box form: Splash-proof

Diameter: 3mm

Note: Any special design or question of WZPK-123SA WZPK2-123SA WZPK-223SA WZPK2-223SA Armored RTD kindly contact the manufacturer for more details.
