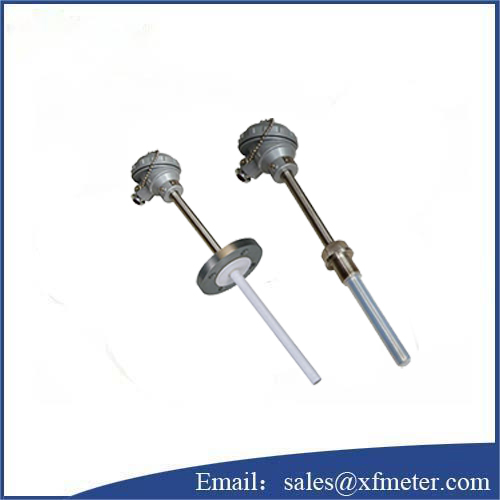

WZP-330F WZP2-330F Anti-corrosive RTD

WZP-330F WZP2-330F Anti-corrosive RTD

Overview

WZP-330F WZP2-330F Anti-corrosive RTD, There are two types of the Anti-corrosion RTD: anti-corrosion copper resistance and anti-corrosion platinum resistance. Anti-corrosion platinum resistance is the most commonly used Anti-corrosion RTD. It is the most commonly used temperature detector in the low temperature area. Its main features are high measurement accuracy and stable performance. Adopt new anti-corrosion material, outsourcing F46, which is mostly used for temperature measurement in various corrosive media of petroleum and chemical industry.

Working principle

WZP-330F WZP2-330F Anti-corrosive RTD is the same as other ordinary thermal resistance. The difference is that the shell material has a protective layer, the use of F4 increases the corrosion resistance.

Features

1,Use mufti-layer anti-corrosion

2,PTFE is often used as an anti-corrosion layer, with long service life

3,Stable and reliable performance, can work for a long time in the temperature range of ≤220 ℃

Main tech data

1,PTFE anti-corrosion layer thickness: 1.0mm (can also be specified by the user)

2,Thermal response time: after anti-corrosion treatment, the thermal response time changes by about 20% (≤8S)

3,Electrical outlet: M20x1.5, NPTI1 / 2

4,Protection level: IP65

Note: Any special design or question of WZP-330F WZP2-330F Anti-corrosion RTD, kindly contact the manufacturer for more details.
