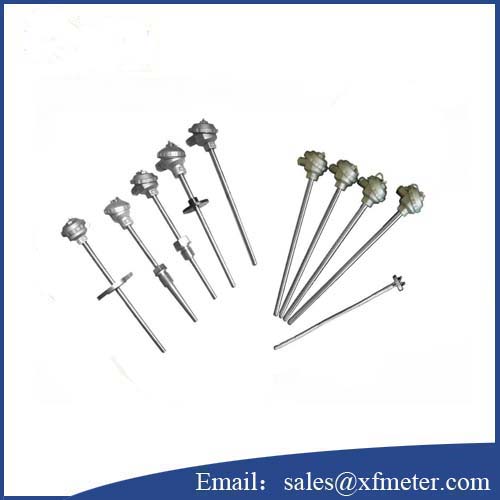

WRN-220 WRN2-220 WRN-220A WRN2-220A Assembly thermocouple

WRN-220 WRN2-220 WRN-220A WRN2-220A Assembly thermocouple

Overview

WRN-220 WRN2-220 WRN-220A WRN2-220A Assembly thermocouple is widely used in electric power, machinery manufacturing and other industries which is often display instrument, recorder and electronic regulator, etc., The assembly is simple and the replacement is convenient. Good anti-vibration performance, wide temperature measurement range, high mechanical strength, good pressure resistance.

Main tech data of WRN-220 WRN2-220 WRN-220A WRN2-220A Assembly thermocouple

Connection: fixed screw thread

Fixed pipe joint thread options: M8/M10/M12/M27; 1/4, 1/2, etc.

Accuracy level: I II level

Probe diameter: 16mm,

Protection tube (probe) Material: 304/316, Ti, GH3030/GH3039, etc. (others can be customized)

Temperature range: 0-1300

Feature of WRN-220 WRN2-220 WRN-220A WRN2-220A Assembly thermocouple

1.Good mechanical properties, vibration resistance and impact resistance.

2.It can be bent and is easy to install.Main tech data

3.Long service life.

4.Small size, no internal air gap, thermal inertia, low measurement lag.

Note: Any special design or question of WRN-220 WRN2-220 WRN-220A WRN2-220A Assembly thermocouple, kindly contact the manufacturer for more details.
