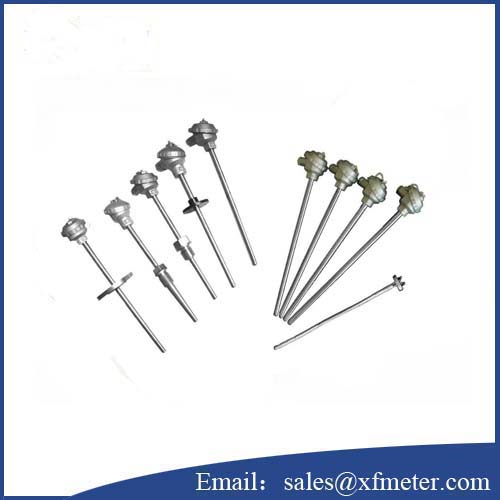

WRET-11 Boiler thermocouple

Overview

WRET-11 Boiler thermocouple is suitable for temperature measurement of boiler wall, tube wall and other cylinder surface of power plant. Furnace wall thermocouple adopts the original armored thermocouple with diameter Φ4 or Φ5 as the temperature measuring probe, and the measuring end is screwed, hoop or welded (it is not suitable to use the welding type when using the original thermal resistance) and other methods The surface is tightly attached together, the other side of the heat conduction plate has the same curved surface as the measured surface, the heat conduction plate is welded or the clamp is tightly attached to the measured furnace wall, and the furnace wall or the tube wall can be measured temperature.

Feature

WRET-11 Boiler thermocouple

1,Excellent craftsmanship

2,High sensitivity

Main tech data

1,Accuracy class: Ⅰ, Ⅱ

2,Nominal pressure: normal pressure

3,Bending radius: R≥5D

4,Temperature measurement range 0-600℃

5,The protective tube material is 1Cr18Ni9Ti,the rest of the materials are ordered according to the agreement

Installation method

Directly welded to the furnace wall.

M8 screw tightening

The diameter of the pipe wall should be indicated when selecting the model

Note: Any special design or question of WRET-11 Boiler thermocouple，kindly contact the manufacturer for more details.
