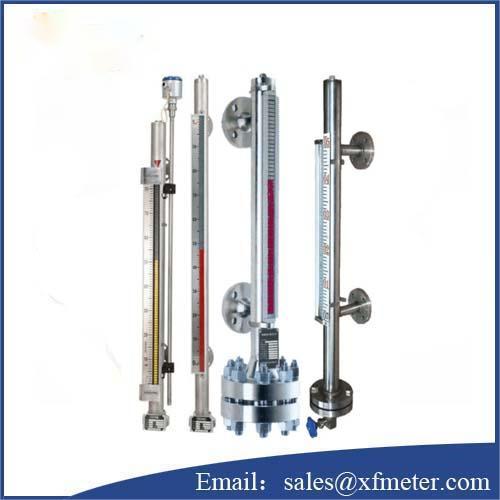

UHZ-202 Magnetic level gauge

UHZ-202 Side-mounted magnetic level gauge

Overview

The UHZ-202 Side-mounted magnetic level gauge（middel temperature and middel-pressure type） is ordinary side mounted magnetic level indicator is a new type site measuring instrument similar with direct reading level indicator , its main body is stainless steel , and it can totally replace the glass pipe(board) level indicator . Adopted with the principle of magnetic coupling, it can insulate the liquid medium and indicator totally, and it is safer and sounder for measuring the liquid medium which is flammable, explosive and poisonous.

The kind of level indicator features clear indication, easy observation. And there are three types for the field indicator, which are red/white flaps or flip ball, floating flap trailing. If matched with the remote instrument ,WCY-UB，WCY-UK ,and WCY-500 digital indicator made by us，and connected to DCS or PLC , it will be more convenient to realize the distance inspection ,control and alarm .

Main tech data

The UHZ-202 Side-mounted magnetic level gauge

Measuring range: 0~300mm- 6000m
Measuring accuracy: ± 10mm
(Reversingcolunm diameter 10mm)
Operating pressure:- 0.1MPa~ 4.0Mpa
Operating temperature: 0~200C°

Medium density: ≥0.6g/cm³

Medium viscidity: ≤0.02 PA’s
(normal temperature.)
Medium density difference: ≥0. 15g/cm³
Connection flange standard: HG20592~ 20635- 97。
(GB、JB、JIS、ANSI) Other standard on request
Connection spec: DN20、25； PN0.6. 1.0、 1.6、 2.5、4.0、6.3

Contact material: stainless steel 304 (316L)

Note: Any special design or question of UHZ-202 Side-mounted magnetic level gauge, kindly contact the manufacturer for more details.
