SBWR-4280/240i Temperature transmitter

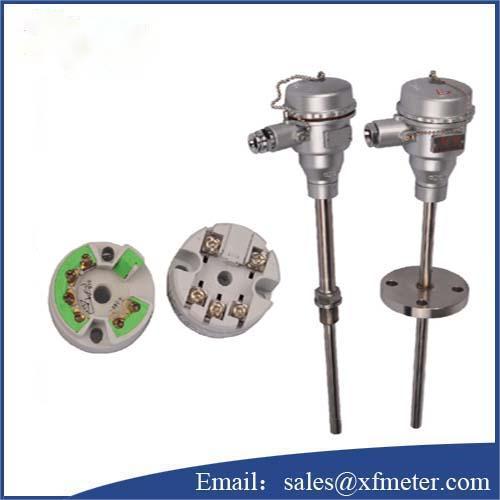

SBWR-4280/240i Explosion-proof temperature transmitter

Overview

The SBWR-4280/240i Explosion-proof temperature transmitter can be directly installed and used on site, measure the temperature of liquid, steam and gas medium in the range of -200-800 ℃ in the production process, and convert the temperature signal into a proportional 4-20mA uniform output, which is displayed in Recorder or computer.Its explosion-proof performance meets the relevant national standards, is a qualified explosion-proof product, and is an ideal temperature sensing integrated product for explosive environments.

Feature

SBWR-4280/240i Explosion-proof temperature transmitter

1,Transmitter components are miniaturized and placed in a junction box to become an integrated temperature transmitter

2,Direct output of 4-20mA at the industrial site not only saves the compensation line, but also improves the anti-interference ability during transmission.

3,High precision, low energy consumption, wide operating temperature range, stable and reliable operation

4,The input and output terminals are isolated to increase the anti-interference ability, which is more suitable for computer use

Main tech data

1,Transmission method: two-wire system

2,Transmitter working power supply: minimum voltage 12V, maximum 35V, rated working voltage 24V

3,Output: output 4-20mA DC signal within the range

4,Ambient temperature:-25℃-80℃,(Hazardous location is not higher than 70 ℃)

5,Relative humidity: 5% -95%

6,The surrounding air does not contain media that cause the transmitter to corrode

7,Shell protection grade: IP65

Note:Any special design or question of SBWR-4280/240i Explosion-proof temperature transmitter ,kindly contact the manufacturer for more details.
