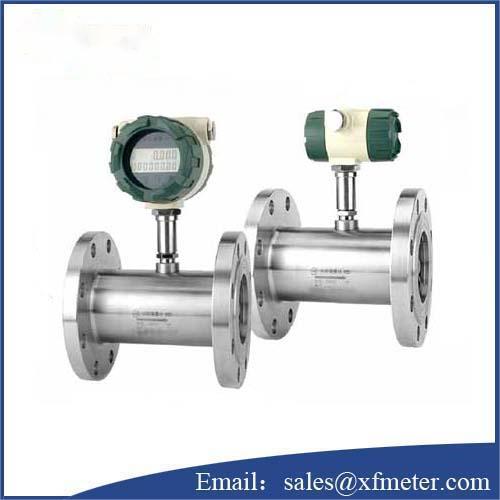

LWGY-4 LWGY-6 LWGY-10 LWGY-15 Liquid turbine flowmeter

LWGY-4 LWGY-6 LWGY-10 LWGY-15 Liquid turbine flowmeter

Overview

LWGY-4 LWGY-6 LWGY-10 LWGY-15 Liquid turbine flowmeter is a new generation of turbine flowmeters with the advantages of simple structure, light weight, high precision, good reproducibility, sensitive response, convenient installation, maintenance and use. It is widely used. It does not corrode with stainless steel 1Cr18Ni9Ti, 2Cr13, corundum Al2O3 and cemented carbide in the measuring closed pipeline, and there is no fiber, particle and other impurities.

Main tech data

LWGY-4 LWGY-6 LWGY-10 LWGY-15 Liquid turbine flowmeter

Sensor accuracy: ±0.5%; ±1.0% (specific up to 0.2%)

Repeatability: ±0.2% of the indicated value

Environmental temperature: 0℃～+120℃

Relative humidity: 5%～95%

Explosion-proof mark: ibIIBT4

Protection level: IP67

Power supply

Sensor: +12VDC, +24VDC (optional)

Transmitter: +24VDC

Transmitter: two-wire 4 ~ 20mADC current signal

Note:Any special design or question of LWGY-4 LWGY-6 LWGY-10 LWGY-15 Liquid turbine flowmeter, kindly contact the manufacturer for more details.
